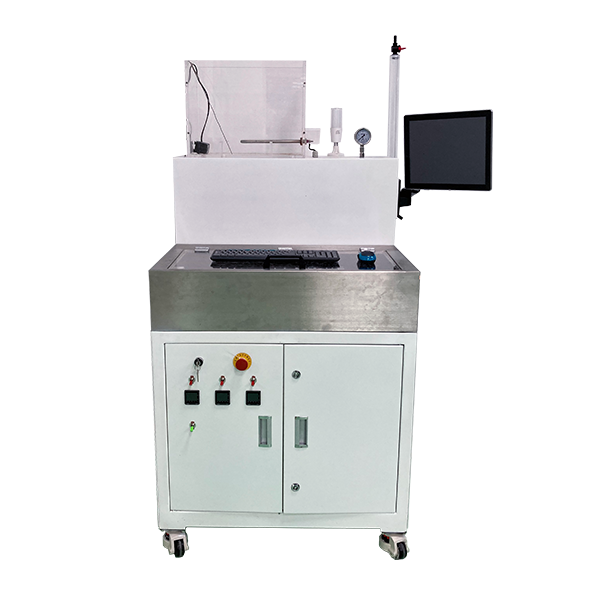

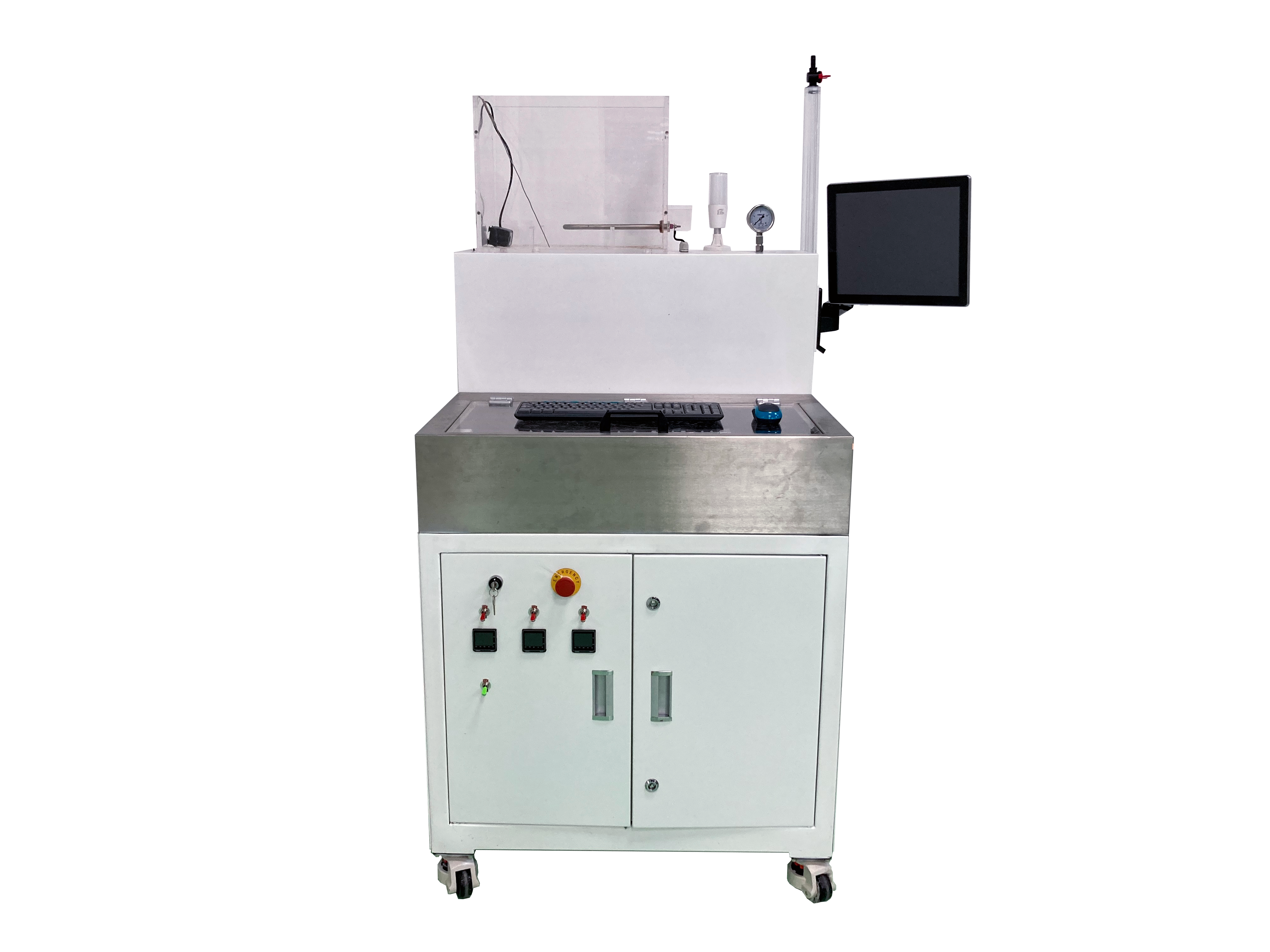

Duct high pressure power injection and burst pressure test system

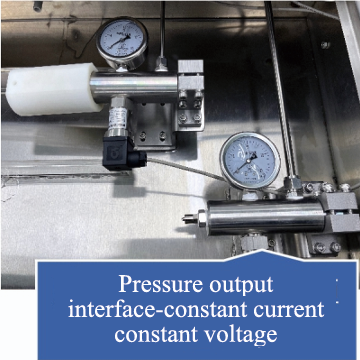

The main function principle of the equipment: the equipment takes high-power, high-rigidity, heavy-duty servo cylinder as the core of pressurization, drives the high-pressure water cylinder to output 0~1500psi (0~10.3MPa) pressure liquid injection flow, which can realize the high-pressure static pressure test and the dynamic injection pressure (constant flow injection) test; and drives the pressure pump to output 0-500psi (0-800psi) pressure liquid injection flow to realize the dynamic injection pressure (constant pressure injection) test. Configuration of constant temperature liquid heat circulation system, can provide 20L, 37 ℃ (maximum60℃)injection liquid.
